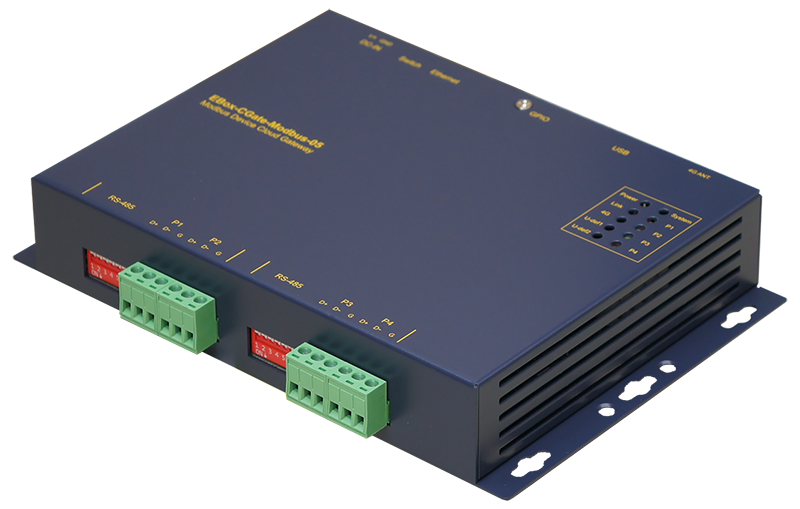

CGate-05
The CGate series are dedicated IoT gateways purpose-built for Modbus devices. With complete device-management services built in, you can monitor every field point in real time through the web interface and sync to the cloud or your back-end.
mini-PCIe 4G LTE Module
Installs in the internal slot; SIM card not included
microSD Storage Expansion
Expands log storage; requires opening the case
Product Highlights
Low-Power Compute Core
NanoPi NEO Core (Allwinner H3 1.2GHz) — low power draw, stable in continuous operation.
Proactive Alarming
An abnormal reading on a monitored point triggers a proactive report — writing a log entry, sending email, and driving a DO output.
4G Module
An optional 4G module gives you an uplink where no fixed-line network is available.
Local Storage & Cloud Upload
Runtime data is stored locally for historical queries and published to the cloud over MQTT — two independent channels.
Modbus Agent
Define where polled data is stored in the Modbus map — one unified data source, served over Modbus-TCP.
Web Real-Time Monitoring
No extra software to install — open a browser to see field devices and every monitoring point.
Field Environment Suitability
Operating temperature −20 to 70 °C at 20–80 % RH — mountable in control cabinets in unconditioned plant rooms.

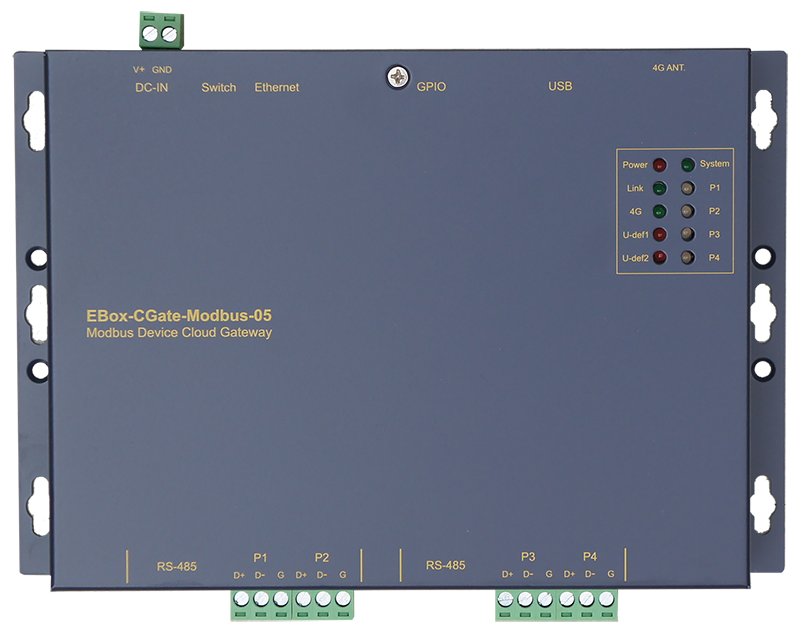

I/O Interfaces
Power In
DC power input
DIP Switch
Mode select
Ethernet
10/100 Mbps port
RS-485 P1 / P2
Modbus-RTU bus
GPIO
Digital I/O
USB Port
USB 2.0 (480 Mbps)
4G Cellular
4G LTE mobile network
Status LEDs
System status indicators
RS-485 P3 / P4
Modbus-RTU bus
Hardware Specifications
Full datasheet (PDF) →COMMUNICATION | |
|---|---|
| Ethernet | ×1 |
| RS-485 | ×4 |
| Cellular (4G) | ✓ |
MONITORING | |
| Total points (max) | 1024 |
| Points per device | 32 |
| Devices per RS-485 | 8 devices (≤256 pts) |
| Max networked devices | 32 devices (≤1024 pts) |
| Modbus Agent service | ✓ |
| Modbus-TCP Master connections | 4 |
FUNCTIONS | |
| Web real-time monitoring | ✓ |
| Parameter import / export | ✓ |
| Alarm | Log | ✓ |
| Alarm | DO trigger | ✓ |
| Alarm | Email | ✓ |
| MQTT Publish | ✓ |
| MQTT Subscribe | ✓ |
LOG | |
| Device records | >2M records |
| Local records (CGate) | 10,000 records |
| Expandable storage | Up to 8GB |
| File export | ✓ |
Refer to the official datasheet for detailed electrical specifications.
Downloads
CGate-05 Datasheet
